Plugs for Square Tubes

SQ

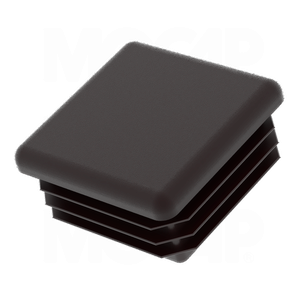

Plastic Stopper for Square Tubing
Plugs for Square Tubes

SQ–Product Media

Plugs for Square Tubes Plastic caps for steel tube Square Tubing Plug Inserts for table legs Square Plastic Tubing Plugs (Metric or Standard) Plugs for Square Tubes Plastic Stopper for Square Tubing Plastic caps for steel tube Square Tubing Plug Inserts for table legs Square Plastic Tubing Plugs (Metric or Standard)
  • Material: LDPE (Low Density Polyethylene)
  • Stocked Material: LDPE (Black)
  • Multiple Ribs for a Secure Fit
  • Heavy End Walls for Durability and Abrasion Resistance

Available in the following varieties:

SQF - Plugs for Square Tubes (Flat) Square Tubing Plugs with Flat Top
SQD - Plugs for Square Tubes (Domed) Square Tubing Plugs with Domed Top
SQP - Plugs for Square Tubes (Pyramid) Square Tubing Plugs with Pyramidal Top
SQA - Plugs for Square Tubes (Angled) Square Tubing Plugs with Angled Top

Size Chart Square Tubing Plug Inserts for table legs

SQ Size Chart

Table View
List View
Part # Description Imperial
or
Metric		 External
Tube Size
mm
in
 Tube Wall Length
mm
in
 Box/Mini/Micro
QTY		 Top Style
Flat		 Top Style
Dome		 Top Style
Pyramid		 Top Style
Angle		 See Prices / Buy Online
SQ10MB Plugs for Square Tubes - SQUARE TUBING PLUG FOR 10MM TUBES LDPE Metric
10.0
0.394
 1.5 - 2mm
11.0
0.433
 6000 1200 120
SQ12MB Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUG FOR 12MM TUBES LDPE Metric
12.0
0.472
 1.5 - 2mm
11.0
0.433
 6000 1200 120
SQ.5B Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 0.500" (1/2") TUBES LDPE Imperial
12.7
0.500
 .049-.065" (1.2-1.7mm)
11.9
0.470
 6000 1200 120
SQ15MB Plastic caps for steel tube - SQUARE TUBING PLUG FOR 15MM TUBES LDPE Metric
15.0
0.591
 1.5 - 2mm
11.0
0.433
 5000 1000 100
SQ.625C Plastic Stopper for Square Tubing - SQUARE TUBING PLUGS FOR 0.625" (5/8") TUBES LDPE Imperial
15.9
0.625
 .035-.083" (0.9-2.1mm)
11.9
0.470
 4000 800 80
SQ16MA Plugs for Square Tubes - SQUARE TUBING PLUG FOR 16MM TUBES LDPE Metric
16.0
0.630
 1 - 2mm
11.9
0.470
 4000 800 80
SQ18MB Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUG FOR 18MM TUBES LDPE Metric
18.0
0.709
 1.5 - 2mm
11.0
0.433
 3500 700 70 10°
SQ.75D Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 0.750" (3/4") TUBES LDPE Imperial
19.1
0.750
 .083-.134" (2.1-3.4mm)
10.9
0.430
 2500 500 50
SQ.75C Plastic caps for steel tube - SQUARE TUBING PLUGS FOR 0.750" (3/4") TUBES LDPE Imperial
19.1
0.750
 .035-.083" (0.9-2.1mm)
11.3
0.445
 2500 500 50 5° 25°
SQ20MB Plugs for Square Tubes - SQUARE TUBING PLUG FOR 20MM TUBES LDPE Metric
20.0
0.787
 1.5 - 2mm
11.0
0.433
 3500 700 70 10° 25°
SQ22MA Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUG FOR 22MM TUBES LDPE Metric
22.0
0.866
 1 - 2mm
11.3
0.445
 3500 700 70
SQ.875C Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 0.875" (7/8") TUBES LDPE Imperial
22.2
0.875
 .035-.083" (0.9-2.1mm)
11.3
0.445
 3500 700 70 25°
SQ25MA Plastic caps for steel tube - SQUARE TUBING PLUG FOR 25MM TUBES LDPE Metric
25.0
0.984
 1 - 2mm
11.3
0.444
 3000 600 60 15°
SQ25MF Plastic Stopper for Square Tubing - SQUARE TUBING PLUG FOR 25MM TUBES LDPE Metric
25.0
0.984
 2 - 3mm
11.3
0.444
 3000 600 60
SQ1C Plugs for Square Tubes - SQUARE TUBING PLUGS FOR 1.000" (1") TUBES LDPE Imperial
25.4
1.000
 .035-.083" (0.9-2.1mm)
11.3
0.444
 3000 600 60 15°
SQ1D Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUGS FOR 1.000" (1") TUBES LDPE Imperial
25.4
1.000
 .083-.134" (2.1-3.4mm)
11.3
0.444
 3000 600 60
SQ1.125C Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 1.125" (1-1/8") TUBES LDPE Imperial
28.6
1.125
 .035-.083" (0.9-2.1mm)
11.3
0.445
 1700 340 34
SQ30MB Plastic caps for steel tube - SQUARE TUBING PLUG FOR 30MM TUBES LDPE Metric
30.0
1.181
 1.5 - 2mm
14.0
0.551
 2000 400 40
SQ30MC Plugs for Square Tubes - SQUARE TUBING PLUG FOR 30MM TUBES LDPE Metric
30.0
1.181
 3mm
14.0
0.551
 2000 400 40
SQ1.25C Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUGS FOR 1.250" (1-1/4") TUBES LDPE Imperial
31.8
1.250
 .035-.083" (0.9-2.1mm)
11.3
0.445
 1700 340 34
SQ1.25D Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 1.250" (1-1/4") TUBES LDPE Imperial
31.8
1.250
 .083-.134" (2.1-3.4mm)
11.3
0.445
 1700 340 34
SQ34MB Plastic caps for steel tube - SQUARE TUBING PLUG FOR 34MM TUBES LDPE Metric
34.0
1.339
 1.5 - 2mm
14.0
0.551
 1700 340 34
SQ34MC Plastic Stopper for Square Tubing - SQUARE TUBING PLUG FOR 34MM TUBES LDPE Metric
34.0
1.339
 3mm
14.0
0.551
 1700 340 34
SQ1.375C Plugs for Square Tubes - SQUARE TUBING PLUGS FOR 1.375" (1-3/8") TUBES LDPE Imperial
34.9
1.375
 .035-.083" (0.9-2.1mm)
13.2
0.520
 1000 200 20
SQ1.375D Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUGS FOR 1.375" (1-3/8") TUBES LDPE Imperial
34.9
1.375
 .083-.134" (2.1-3.4mm)
13.2
0.520
 1000 200 20
SQ35MA Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUG FOR 35MM TUBES LDPE Metric
35.0
1.378
 1 - 2mm
13.2
0.520
 1000 200 20
SQ35MF Plastic caps for steel tube - SQUARE TUBING PLUG FOR 35MM TUBES LDPE Metric
35.0
1.378
 2 - 3mm
13.2
0.520
 1000 200 20
SQ1.5W Plugs for Square Tubes - SQUARE TUBING PLUGS FOR 1.500" (1-1/2") TUBES LDPE Imperial
38.1
1.500
 .203-.259" (5.2-6.6mm)
11.3
0.445
 800 160 16
SQ1.5C Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUGS FOR 1.500" (1-1/2") TUBES LDPE Imperial
38.1
1.500
 .035-.083" (0.9-2.1mm)
14.7
0.577
 800 160 16
SQ1.5D Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 1.500" (1-1/2") TUBES LDPE Imperial
38.1
1.500
 .083-.134" (2.1-3.4mm)
14.7
0.577
 1000 200 20
SQ40MB Plastic caps for steel tube - SQUARE TUBING PLUG FOR 40MM TUBES LDPE Metric
40.0
1.575
 1.5 - 2mm
14.0
0.551
 1000 200 20
SQ40MC Plastic Stopper for Square Tubing - SQUARE TUBING PLUG FOR 40MM TUBES LDPE Metric
40.0
1.575
 3mm
14.0
0.551
 1000 200 20
SQ40MD Plugs for Square Tubes - SQUARE TUBING PLUG FOR 40MM TUBES LDPE Metric
40.0
1.575
 4mm
14.0
0.551
 1000 200 20
SQ40ME Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUG FOR 40MM TUBES LDPE Metric
40.0
1.575
 5mm
14.0
0.551
 1000 200 20
SQ1.75D Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 1.750" (1-3/4") TUBES LDPE Imperial
44.5
1.750
 .083-.134" (2.1-3.4mm)
13.2
0.520
 500 100 10
SQ1.75C Plastic caps for steel tube - SQUARE TUBING PLUGS FOR 1.750" (1-3/4") TUBES LDPE Imperial
44.5
1.750
 .035-.083" (0.9-2.1mm)
14.7
0.577
 600 120 12
SQ45MB Plugs for Square Tubes - SQUARE TUBING PLUG FOR 45MM TUBES LDPE Metric
45.0
1.772
 1.5 - 2mm
14.0
0.551
 600 120 12
SQ50MB Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUG FOR 50MM TUBES LDPE Metric
50.0
1.969
 1.5 - 2mm
14.0
0.551
 500 100 10
SQ50MC Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUG FOR 50MM TUBES LDPE Metric
50.0
1.969
 3mm
14.0
0.551
 500 100 10
SQ50ME Plastic caps for steel tube - SQUARE TUBING PLUG FOR 50MM TUBES LDPE Metric
50.0
1.969
 5mm
14.0
0.551
 500 100 10
SQ2G Plastic Stopper for Square Tubing - SQUARE TUBING PLUGS FOR 2.000" (2") TUBES LDPE Imperial
50.8
2.000
 .165-.238" (4.2-6.0mm)
13.2
0.520
 500 100 10
SQ2X Plugs for Square Tubes - SQUARE TUBING PLUGS FOR 2.000" (2") TUBES LDPE Imperial
50.8
2.000
 ??
13.2
0.520
 -- -- --
SQ2C Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUGS FOR 2.000" (2") TUBES LDPE Imperial
50.8
2.000
 .035-.083" (0.9-2.1mm)
14.6
0.576
 500 100 10
SQ2D Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 2.000" (2") TUBES LDPE Imperial
50.8
2.000
 .083-.134" (2.1-3.4mm)
14.6
0.576
 500 100 10
SQ2.25D Plastic caps for steel tube - SQUARE TUBING PLUGS FOR 2.250" (2-1/4") TUBES LDPE Imperial
57.2
2.250
 .083-.134" (2.1-3.4mm)
14.6
0.574
 200 40 4
SQ60MC Plugs for Square Tubes - SQUARE TUBING PLUG FOR 60MM TUBES LDPE Metric
60.0
2.362
 3mm
14.0
0.551
 250 50 5
SQ60MB Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUG FOR 60MM TUBES LDPE Metric
60.0
2.362
 1.5 - 2mm
14.0
0.551
 250 50 5
SQ60MD Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUG FOR 60MM TUBES LDPE Metric
60.0
2.362
 4mm
14.0
0.551
 250 50 5
SQ60ME Plastic caps for steel tube - SQUARE TUBING PLUG FOR 60MM TUBES LDPE Metric
60.0
2.362
 5mm
14.0
0.551
 250 50 5
SQ2.5D Plastic Stopper for Square Tubing - SQUARE TUBING PLUGS FOR 2.500" (2-1/2") TUBES LDPE Imperial
63.5
2.500
 .083-.134" (2.1-3.4mm)
14.2
0.560
 500 100 10
SQ2.5H Plugs for Square Tubes - SQUARE TUBING PLUGS FOR 2.500" (2-1/2") TUBES LDPE Imperial
63.5
2.500
 .134-.203" (3.4-5.2mm)
14.2
0.560
 300 60 6
SQ2.5I Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUGS FOR 2.500" (2-1/2") TUBES LDPE Imperial
63.5
2.500
 .025-.065" (0.6-1.7mm)
14.2
0.560
 300 60 6
SQ2.75C Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 2.750" (2-3/4") TUBES LDPE Imperial
69.9
2.750
 .035-.083" (0.9-2.1mm)
16.5
0.650
 200 40 4
SQ2.75J Plastic caps for steel tube - SQUARE TUBING PLUGS FOR 2.750" (2-3/4") TUBES LDPE Imperial
69.9
2.750
 .083-.165" (2.1-4.2mm)
18.5
0.730
 200 40 4
SQ70MC Plugs for Square Tubes - SQUARE TUBING PLUG FOR 70MM TUBES LDPE Metric
70.0
2.756
 3mm
17.0
0.669
 250 50 5
SQ70MD Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUG FOR 70MM TUBES LDPE Metric
70.0
2.756
 4mm
17.0
0.669
 250 50 5
SQ3K Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 3.000" (3") TUBES LDPE Imperial
76.2
3.000
 .180-.259" (4.6-6.6mm)
13.2
0.520
 400 80 8
SQ3Q Plastic caps for steel tube - SQUARE TUBING PLUGS FOR 3.000" (3") TUBES LDPE Imperial
76.2
3.000
 .109-.165" (2.8-4.2mm)
22.9
0.900
 400 80 8
SQ3.125O Plastic Stopper for Square Tubing - SQUARE TUBING PLUGS FOR 3.125" (3-1/8") TUBES LDPE Imperial
79.4
3.125
 .120-.203" (3.0-5.2mm)
24.6
0.970
 150 30 3
SQ80MC Plugs for Square Tubes - SQUARE TUBING PLUG FOR 80MM TUBES LDPE Metric
80.0
3.150
 3mm
17.0
0.669
 150 30 3
SQ3.5C Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUGS FOR 3.500" (3-1/2") TUBES LDPE Imperial
88.9
3.500
 .035-.083" (0.9-2.1mm)
17.5
0.690
 100 20 2
SQ3.5L Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 3.500" (3-1/2") TUBES LDPE Imperial
88.9
3.500
 .203" (5.2mm)
17.5
0.690
 100 20 2
SQ3.5M Plastic caps for steel tube - SQUARE TUBING PLUGS FOR 3.500" (3-1/2") TUBES LDPE Imperial
88.9
3.500
 .083-.203" (2.1-5.2mm)
17.5
0.690
 100 20 2
SQ90MB Plugs for Square Tubes - SQUARE TUBING PLUG FOR 90MM TUBES LDPE Metric
90.0
3.543
 1.5 - 2mm
17.0
0.669
 100 20 2
SQ90ME Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUG FOR 90MM TUBES LDPE Metric
90.0
3.543
 5mm
17.0
0.669
 100 20 2
SQ3.875G Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 3.875" (3-7/8") TUBES LDPE Imperial
98.4
3.875
 .165-.238" (4.2-6.0mm)
25.4
1.000
 200 40 4
SQ100MC Plastic caps for steel tube - SQUARE TUBING PLUG FOR 100MM TUBES LDPE Metric
100.0
3.937
 3mm
17.0
0.669
 100 20 2
SQ100ME Plastic Stopper for Square Tubing - SQUARE TUBING PLUG FOR 100MM TUBES LDPE Metric
100.0
3.937
 5mm
17.0
0.669
 100 20 2
SQ4K Plugs for Square Tubes - SQUARE TUBING PLUGS FOR 4.000" (4") TUBES LDPE Imperial
101.6
4.000
 .180-.259" (4.6-6.6mm)
23.1
0.910
 150 30 3
SQ4N Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUGS FOR 4.000" (4") TUBES LDPE Imperial
101.6
4.000
 .120-.238" (3.0-6.0mm)
23.1
0.910
 150 30 3
SQ120ME Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUG FOR 120MM TUBES LDPE Metric
120.0
4.724
 5mm
17.0
0.669
 100 20 2
SQ4.75O Plastic caps for steel tube - SQUARE TUBING PLUGS FOR 4.750" (4-3/4") TUBES LDPE Imperial
120.7
4.750
 .120-.203" (3.0-5.2mm)
25.4
1.000
 100 20 2
SQ5P Plugs for Square Tubes - SQUARE TUBING PLUGS FOR 5.000" (5") TUBES LDPE Imperial
127.0
5.000
 .134-.259" (3.4-6.6mm)
24.9
0.980
 75 15 2
SQ6D Square Plastic Tubing Plugs (Metric or Standard) - SQUARE TUBING PLUGS FOR 6.000" (6") TUBES LDPE Imperial
152.4
6.000
 .083-.134" (2.1-3.4mm)
24.9
0.980
 50 10 1
SQ6P Square Tubing Plug Inserts for table legs - SQUARE TUBING PLUGS FOR 6.000" (6") TUBES LDPE Imperial
152.4
6.000
 .134-.259" (3.4-6.6mm)
24.9
0.980
 50 10 1
Part # Description Imperial
or
Metric		 External
Tube Size
mm
in
 Tube Wall Length
mm
in
 Box/Mini/Micro
QTY		 Top Style
Flat		 Top Style
Dome		 Top Style
Pyramid		 Top Style
Angle		 See Prices / Buy Online
Legend:
- Add to Basket - View Price

Use External Dimension for Tubing Plugs Please make sure you measure the outside of your tube when referencing our sizing information. Also, note the "Tube Wall" specified for each plug to make sure it will be compatible with your particular tube.

Micropacks are only available for purchase through our online store.




Not sure what part you need? Would you like to consider another type or part, or a different material?
Consult MOCAP's Application Advisor for assistance.



Plugs for Square Tubes - Information

MOCAP SQ Series heavy wall polyethylene plugs for square tubing are designed to fit multiple tube gauges and provide a secure fit. Poly tube plugs are ideal for office and patio furniture, tubular racks, appliances, exercise equipment, or anywhere a finished look is needed. Tube plugs include multiple horizontal ribs designed with built in flexibility for easy install and secure fit. SQ Series Tubing Plugs are available in sizes to fit 10mm to 120mm metric rectangular tubes.

  • Our tube plugs fit multiple gauges
  • Multiple inner ribs for a secure fit


Many Sizes of Our Plugs for Square Tubes are Stocked for Immediate Shipment.


Most stock sizes are available in Mini-Packs when Smaller Quantities are Needed. To place an order for this product, call 0800 046 7436 or use our Contact Request Form to receive information by e-mail.


In addition to our plastic plugs for square tubing, MOCAP stocks Tube Plugs to fit Round and Rectangular tubing, available in both Metric and Standard U.S. sizes.






RoHS


Diagram
MOCAP - Plugs for Square Tubes
© 2024 MOCAP. All Rights Reserved.
