Square Head Flanged Plugs for NPT Threads

SFPN


Flanged NPT Plugs with Square Head
Square Head Flanged Plugs for NPT Threads

SFPN–Product Media

Square Head Flanged Plugs for NPT Threads Plastic Flanged Square Head Bolt for NPT Threads Square Head Flanged Threaded Plug Caps Polypropylene Flared Square Head Plugs for NPT Threads Square Head Flanged Plugs for NPT Threads Flanged NPT Plugs with Square Head Plastic Flanged Square Head Bolt for NPT Threads Square Head Flanged Threaded Plug Caps Polypropylene Flared Square Head Plugs for NPT Threads Square Head Flanged Plugs for NPT Threads
  • Material: PP (Polypropylene)
  • Stocked Material: PP (Red)
  • Designed to Protect Threads from Dust, Dirt, and Moisture During Low-Pressure Testing and In-Plant Handling
  • Flange Allows for Protection of the Outside of Port

Size Chart Square Head Flanged Threaded Plug Caps

SFPN Size Chart

Table View
List View
Part # Description To Fit NPT Stem Height
mm
in
 Threaded Area Length
mm
in
 Flange OD
mm
in
 Head
mm
in
 Box/Mini/Micro
QTY		 See Prices / Buy Online
SFPN0125 Square Head Flanged Plugs for NPT Threads - SQ HEAD FLANGED PLUG FOR 1/8-27 NPT THRDS 1/8 - 27
4.8
0.190
7.4
0.290
14.0
0.550
7.1
0.280
 5000 1000 100
SFPN0250 Polypropylene Flared Square Head Plugs for NPT Threads - SQ HEAD FLANGED PLUG FOR 1/4-18 NPT THRDS 1/4 - 18
6.4
0.250
8.9
0.350
17.0
0.670
10.9
0.430
 5000 1000 100
SFPN0375 Square Head Flanged Threaded Plug Caps - SQ HEAD FLANGED PLUG FOR 3/8-18 NPT THRDS 3/8 - 18
6.4
0.250
10.4
0.410
20.3
0.800
10.9
0.430
 2500 500 50
SFPN0500 Plastic Flanged Square Head Bolt for NPT Threads - SQ HEAD FLANGED PLUG FOR 1/2-14 NPT THRDS 1/2 - 14
6.4
0.250
11.9
0.470
24.9
0.980
14.2
0.560
 3000 600 60
SFPN0750 Flanged NPT Plugs with Square Head - SQ HEAD FLANGED PLUG FOR 3/4-14 NPT THRDS 3/4 - 14
6.4
0.250
13.2
0.520
31.5
1.240
15.7
0.620
 2000 400 40
Part # Description To Fit NPT Stem Height
mm
in
 Threaded Area Length
mm
in
 Flange OD
mm
in
 Head
mm
in
 Box/Mini/Micro
QTY		 See Prices / Buy Online
Legend:
- Add to Basket - View Price

Micropacks are only available for purchase through our online store.



Not sure what part you need? Would you like to consider another type or part, or a different material?
Consult MOCAP's Application Advisor for assistance.

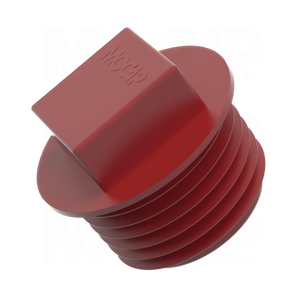

Square Head Flanged Plugs for NPT Threads - Information

MOCAP Square Head Flanged Plugs are designed for use on NPT threads and fittings. The Square Head design allows for easy installation. The Flange design protects the outside of the port, while the plugs keep ports protected during low-pressure testing and in-house processing or handling. These are not intended for permanent applications.
Protects threaded components from moisture, dust and damage during production, shipping and storage, and can also be used as masking during painting and plating. Our SFPN Series Threaded Plugs are moulded in Red polypropylene plastic and sized to fit NPT threads from 1/8-27 thru 3/4-14.

Many Sizes of Our Square Head Flanged Plugs for NPT Threads are Stocked for Immediate Shipment.


Most stock sizes are available in Mini-Packs when Smaller Quantities are Needed. To place an order for this product, call 0800 046 7436 or use our Contact Request Form to receive information by e-mail.
