Universal Thread Plugs

U


Polyethylene Plugs for Universal Threads
Universal Thread Plugs

U–Product Media

Universal Thread Plugs Plastic Bolt for Universal Threads (Polyethylene) Plastic Plug Caps for Universal Threads Plastic Plugs for Universal Threads Universal Thread Plugs Polyethylene Plugs for Universal Threads Plastic Bolt for Universal Threads (Polyethylene) Plastic Plug Caps for Universal Threads Plastic Plugs for Universal Threads Universal Thread Plugs
  • Material: LDPE (Low Density Polyethylene) (Red)
  • Designed for Maximum Flexibility to Fit Many Different Thread Types and Sizes with a Simple Push-In and Turn to Lock-In-Place

Size Chart Plastic Plug Caps for Universal Threads

U Size Chart

Table View
List View
Part # Description To Fit BSP To Fit NPT To Fit UNF To Fit UN To Fit METRIC Thread Length
mm
in
Bevel Length
mm
in
Stem Diameter
mm
in
Box/Mini/Micro
QTY
See Prices / Buy Online
U100RD1 Universal Thread Plugs - UNIVERSAL THREAD PLUG, LDPE RED 1/8" 1/8" 7/16" M10
13.5
0.530
6.6
0.260
11.0
0.434
5000 1000 100
U105RD1 Plastic Plugs for Universal Threads - UNIVERSAL THREAD PLUG, LDPE RED 1/4" 1/2" M11, M12
14.2
0.560
7.1
0.280
12.8
0.504
5000 1000 100
U110RD1 Plastic Plug Caps for Universal Threads - UNIVERSAL THREAD PLUG, LDPE RED 1/4" 1/4" 9/16" M14
15.0
0.590
7.9
0.310
14.4
0.568
5000 1000 100
U115RD1 Plastic Bolt for Universal Threads (Polyethylene) - UNIVERSAL THREAD PLUG, LDPE RED 3/8" 3/4" M16, M18, M20
17.0
0.670
9.9
0.390
19.7
0.774
5000 1000 100
U120RD1 Polyethylene Plugs for Universal Threads - UNIVERSAL THREAD PLUG, LDPE RED 1/2", 5/8" 1" M22, M24, M25
18.8
0.740
11.7
0.460
24.8
0.976
3000 600 60
U125RD1 Universal Thread Plugs - UNIVERSAL THREAD PLUG, LDPE RED 3/4", 7/8" 3/4" 1-3/16" M30
23.1
0.910
14.2
0.560
30.9
1.216
2500 500 50
U130RD1 Plastic Plugs for Universal Threads - UNIVERSAL THREAD PLUG, LDPE RED 7/8", 1" 1-7/16" M36
24.9
0.980
14.2
0.560
37.6
1.480
2500 500 50
Part # Description To Fit BSP To Fit NPT To Fit UNF To Fit UN To Fit METRIC Thread Length
mm
in
Bevel Length
mm
in
Stem Diameter
mm
in
Box/Mini/Micro
QTY
See Prices / Buy Online
Legend:
- Add to Basket - View Price

Micropacks are only available for purchase through our online store.



Not sure what part you need? Would you like to consider another type or part, or a different material?
Consult MOCAP's Application Advisor for assistance.



Universal Thread Plugs - Information

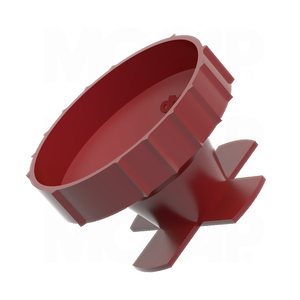

MOCAP Universal Thread Plugs are designed to fit many different thread types and sizes, allowing for maximum flexibility. These Plastic Plugs are easy to install. Simply push the plug into the female threaded port and apply a small turn to lock it in place.
Protects threaded components and fittings from moisture, dust and damage during production, shipping and storage.
Our U Series Plugs are moulded in Red polyethylene plastic and sized to fit 1/8 and 1/4 NPT or 7/16 thru 1-7/16 UN or 1/8 thru 7/8 BSP or M10 thru M36 Threads.

Many Sizes of Our Universal Thread Plugs are Stocked for Immediate Shipment.


Most stock sizes are available in Mini-Packs when Smaller Quantities are Needed. To place an order for this product, call 0800 046 7436 or use our Contact Request Form to receive information by e-mail.











RoHS


Diagram
