General Purpose Plugs for Metric Threads

 0800 046 7436


General Purpose Plugs for Metric Threads

GPM

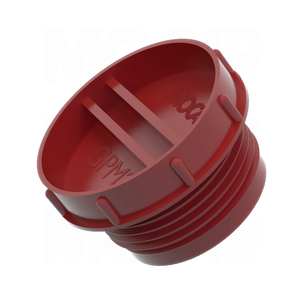

Plastic Metric Plugs with Screwdriver Slot on Cap
General Purpose Plugs for Metric Threads

GPM–Product Media

General Purpose Plugs for Metric Threads Polypropylene Plastic Plug Caps for Metric Threads Metric General-Purpose Plastic Plug Caps Plastic Plugs for Metric Threads General Purpose Plugs for Metric Threads Plastic Metric Plugs with Screwdriver Slot on Cap Polypropylene Plastic Plug Caps for Metric Threads Metric General-Purpose Plastic Plug Caps Plastic Plugs for Metric Threads General Purpose Plugs for Metric Threads
  • Material: PP (Polypropylene) (Red)
  • Designed to Protect Metric Threads and Fittings from Damage, Dust, Debris and Contaminants
  • Knurled Head and Slot for Easy On-Off Application

Size Chart Metric General-Purpose Plastic Plug Caps

GPM Size Chart

Table View
List View
Part # Description To Fit METRIC Thread Flange Thickness
mm
in
Length
mm
in
Flange OD
mm
in
Box/Mini/Micro
QTY
See Prices / Buy Online
GPM0810RD4 General Purpose Plugs for Metric Threads - GEN PURPOSE PLUG FOR M8 X 1.0 THRDS, PP RED M8x1.0
5.1
0.200
8.9
0.350
16.5
0.650
5000 1000 100
GPM1010RD4 Plastic Plugs for Metric Threads - GEN PURPOSE PLUG FOR M10 X 1.0 THRDS, PP RED M10x1.0
5.1
0.200
8.9
0.350
16.5
0.650
5000 1000 100
GPM1215RD4 Metric General-Purpose Plastic Plug Caps - GEN PURPOSE PLUG FOR M12 X 1.5 THRDS, PP RED M12x1.5
5.1
0.200
8.9
0.350
21.1
0.830
2500 500 50
GPM1210RD4 Polypropylene Plastic Plug Caps for Metric Threads - GEN PURPOSE PLUG FOR M12 X 1.0 THRDS, PP RED M12x1.0
5.1
0.200
8.9
0.350
21.1
0.830
5000 1000 100
GPM1415RD4 Plastic Metric Plugs with Screwdriver Slot on Cap - GEN PURPOSE PLUG FOR M14 X 1.5 THRDS, PP RED M14x1.5
5.1
0.200
8.9
0.350
21.1
0.830
5000 1000 100
GPM1615RD4 General Purpose Plugs for Metric Threads - GEN PURPOSE PLUG FOR M16 X 1.5 THRDS, PP RED M16x1.5
6.1
0.240
9.9
0.390
23.1
0.910
3000 600 60
GPM1815RD4 Plastic Plugs for Metric Threads - GEN PURPOSE PLUG FOR M18 X 1.5 THRDS, PP RED M18x1.5
6.1
0.240
9.9
0.390
23.1
0.910
4000 800 80
GPM2015RD4 Metric General-Purpose Plastic Plug Caps - GEN PURPOSE PLUG FOR M20 X 1.5 THRDS, PP RED M20x1.5
6.1
0.240
11.9
0.470
27.9
1.100
3000 600 60
GPM2215RD4 Polypropylene Plastic Plug Caps for Metric Threads - GEN PURPOSE PLUG FOR M22 X 1.5 THRDS, PP RED M22x1.5
6.1
0.240
11.9
0.470
27.9
1.100
3000 600 60
GPM2415RD4 General Purpose Plugs for Metric Threads - GEN PURPOSE PLUG FOR M24 X 1.5 THRDS, PP RED M24x1.5
6.1
0.240
11.9
0.470
31.0
1.220
2000 400 40
GPM2515RD4 Plastic Plugs for Metric Threads - GEN PURPOSE PLUG FOR M25 X 1.5 THRDS, PP RED M25x1.5
6.1
0.240
11.9
0.470
31.0
1.220
2000 400 40
GPM2615RD4 Metric General-Purpose Plastic Plug Caps - GEN PURPOSE PLUG FOR M26 X 1.5 THRDS, PP RED M26x1.5
6.1
0.240
11.9
0.470
33.0
1.300
2000 400 40
GPM5220RD4 Polypropylene Plastic Plug Caps for Metric Threads - GEN PURPOSE PLUG FOR M52 X 2.0 THRDS, PP RED M52x2.0
8.9
0.350
15.0
0.590
61.0
2.400
500 100 10
Part # Description To Fit METRIC Thread Flange Thickness
mm
in
Length
mm
in
Flange OD
mm
in
Box/Mini/Micro
QTY
See Prices / Buy Online
Legend:
- Add to Basket - View Price

Micropacks are only available for purchase through our online store.



Not sure what part you need? Would you like to consider another type or part, or a different material?
Consult MOCAP's Application Advisor for assistance.



General Purpose Plugs for Metric Threads - Information

MOCAP General Purpose Plugs are designed for use on Metric threads and fittings. These Threaded Plastic Plugs are ridged for ease with manual assembly, but can also be tightened with a screwdriver or hex wrench.
Protects threaded components from moisture, dust and damage during production, shipping and storage, and can also be used as masking during painting and plating. Designed to work in low-pressure testing requirements.
Our GPM Series Threaded Plugs are moulded in Red polypropylene plastic and sized to plug Metric threads from M12x1.5 thru M22x1.5.

Many Sizes of Our General Purpose Plugs for Metric Threads are Stocked for Immediate Shipment.


Most stock sizes are available in Mini-Packs when Smaller Quantities are Needed. To place an order for this product, call 0800 046 7436 or use our Contact Request Form to receive information by e-mail.







RoHS


Diagram
MOCAP - General Purpose Plugs for Metric Threads
