Threaded Plastic Plugs for Flat-Faced O-Ring Fittings

FOP


Polypropylene Flat-Faced O-Ring Plugs
Threaded Plastic Plugs for Flat-Faced O-Ring Fittings

FOP–Product Media

Threaded Plastic Plugs for Flat-Faced O-Ring Fittings Flat-Faced O-Ring Plug Caps (Polyethylene Plastic) Plastic Bolt for Flat-Faced O-Ring Fittings Threaded Plastic Plugs for Flat-Faced O-Ring Fittings Threaded Plastic Plugs for Flat-Faced O-Ring Fittings Polypropylene Flat-Faced O-Ring Plugs Flat-Faced O-Ring Plug Caps (Polyethylene Plastic) Plastic Bolt for Flat-Faced O-Ring Fittings Threaded Plastic Plugs for Flat-Faced O-Ring Fittings Threaded Plastic Plugs for Flat-Faced O-Ring Fittings
  • Material: LDPE (Low Density Polyethylene)
  • Stocked Material: LDPE (Red)
  • Knurled Grip for Easy Application and Provide a Better-than-Normal Seal with Only Hand-Tightening

Size Chart Plastic Bolt for Flat-Faced O-Ring Fittings

FOP Size Chart

Table View
List View
Part # Description Tube Size
mm
in
To Fit STD Thread Length
mm
in
Flange OD
mm
in
Box/Mini/Micro
QTY
See Prices / Buy Online
FOP200 Threaded Plastic Plugs for Flat-Faced O-Ring Fittings - PLUG FOR 11/16-16 FLAT FACE O-RING FTNG OR 3/8 TUBE
9.5
0.375
11/16 - 16
11.2
0.440
22.1
0.870
5000 1000 100
FOP210 Threaded Plastic Plugs for Flat-Faced O-Ring Fittings - PLUG FOR 13/16-16 FLAT FACE O-RING FTNG OR 1/2 TUBE
12.7
0.500
13/16 - 16
12.7
0.500
23.9
0.940
2500 500 50
FOP220 Plastic Bolt for Flat-Faced O-Ring Fittings - PLUG FOR 1-14 FLAT FACE O-RING FTNG OR 5/8 TUBE
15.9
0.625
1 - 14
15.0
0.590
29.5
1.160
2500 500 50
FOP230 Flat-Faced O-Ring Plug Caps (Polyethylene Plastic) - PLUG FOR 1-3/16-12 FLAT FACE O-RING FTNG OR 3/4 TUBE
19.1
0.750
1-3/16 - 12
16.0
0.630
33.8
1.330
2500 500 50
FOP240 Polypropylene Flat-Faced O-Ring Plugs - PLUG FOR 1-7/16-12 FLAT FACE O-RING FTNG OR 1 TUBE
25.4
1.000
1-7/16 - 12
19.1
0.750
41.4
1.630
1000 200 20
Part # Description Tube Size
mm
in
To Fit STD Thread Length
mm
in
Flange OD
mm
in
Box/Mini/Micro
QTY
See Prices / Buy Online
Legend:
- Add to Basket - View Price

Micropacks are only available for purchase through our online store.



Not sure what part you need? Would you like to consider another type or part, or a different material?
Consult MOCAP's Application Advisor for assistance.



Threaded Plastic Plugs for Flat-Faced O-Ring Fittings - Information

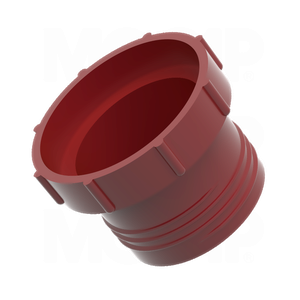

MOCAP Threaded Plastic Plugs are designed for use on Flat Faced O-Ring fittings. These Threaded Plastic Plugs have a ridged finish for easy use in manual assembly.
Protects threaded fittings from moisture, dust and damage during production, shipping and storage.
Our FOP Series Threaded Plugs are moulded in Red polyethylene plastic and sized to fit Flat Faced O-Ring Fittings from 11/16-16 thru 1-7/16-12 or tubes from 3/8 thru 1.

Many Sizes of Our Threaded Plastic Plugs for Flat-Faced O-Ring Fittings are Stocked for Immediate Shipment.


Most stock sizes are available in Mini-Packs when Smaller Quantities are Needed. To place an order for this product, call 0800 046 7436 or use our Contact Request Form to receive information by e-mail.







RoHS


Diagram
